Stainless Steel Threaded Flange ASME B16.5 300# For Industrial Pipeline A182F-310S

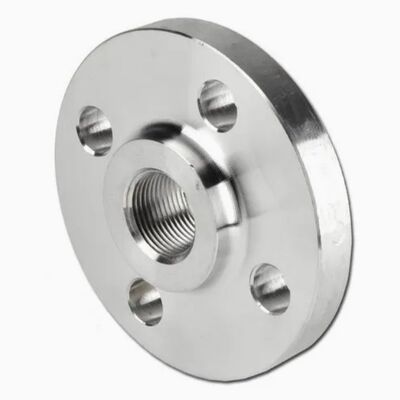

Büyük resim : Stainless Steel Threaded Flange ASME B16.5 300# For Industrial Pipeline A182F-310S

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Metal
Sertifika:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model numarası:	ASTM A815 UNS S41000

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	Anlaşılabilir
Ambalaj bilgileri:	Standart nakliye paketi
Teslim süresi:	15 -30İş günü
Ödeme koşulları:	Banka havalesi, Western Union
Yetenek temini:	Ayda 10000 PC

İletişim

Stainless Steel Threaded Flange ASME B16.5 300# For Industrial Pipeline A182F-310S

Açıklama

Ürün adı:	Dövenli kaynak flensleri	Malzeme Sınıfı:	ASTM A815 UNS S41000
Çelik Sınıfı:	dubleks Paslanmaz Çelik	Ürün:	Alaşımlı Çelik Flanşlar
Sınıf:	300#	standrad:	ASME B16.5

Stainless Steel Pipe Fittings Threaded Flange Class 300# ASME B16.5 For Industrial Pipeline Connection A182F-310S

1. Product Overview & Core Advantages

This threaded flange is forged from premium stainless steel and fully compliant with ASME B16.5 standard. Different from welding flanges, its internal precise NPT threaded design enables fast disassembly and assembly without field welding work, greatly improving pipeline installation efficiency. The whole flange is integrally forged with dense internal structure, free of pores and cracks, delivering stable pressure bearing capacity up to Class 300#. The RF sealing surface is finely machined with flat finish, matching gaskets tightly to stop medium leakage effectively. Stainless steel material provides outstanding rust and oxidation resistance, suitable for long-term service in humid and mildly corrosive environments. Every piece undergoes strict dimensional, thread and hydraulic pressure inspection before delivery to ensure reliable sealing performance.

2. Technical Parameter Table

Parameter Item	Specification Details
Material Grade	Stainless Steel WP304 / WP316 Customizable
Executive Standard	ASME B16.5
Product Type	Threaded Flange
Pressure Class	Class 300#
Connection Type	NPT Internal Thread
Sealing Face	RF Raised Face
Available Sizes	DN15-DN600 / 1/2"-24"
Core Features	Easy installation without welding, anti-rust, high sealing, easy maintenance
Applicable Medium	Water, gas, oil, weak corrosive industrial fluid

3. Product Function & Application

The threaded flange connects pipes and valves through thread matching, realizing detachable sealed pipeline joints for convenient later maintenance and replacement of equipment. It is widely used in water supply systems, fire fighting pipelines, light chemical factories, food equipment and general industrial low-to-medium pressure fluid conveying projects.

4. Packaging, Trading & After-sales Support

All flanges are wrapped with anti-rust film, separated by shockproof foam and packed in fumigated export wooden cases to avoid scratch and rust during long-distance transport. We accept flexible payment terms, adjustable delivery cycles and customized sizes. Free return and exchange service is offered for defective products, size mismatch or transport damage. Please contact us for bulk prices, technical drawings and customized engineering solutions.

Stainless Steel Threaded Flange ASME B16.5 300# For Industrial Pipeline A182F-310S 0
