Ürün ayrıntıları:
|
| Malzeme: | XM-19 Nitronic 50 | boyut: | Özelleştirilmiş |
|---|---|---|---|
| sınıf: | UNS S20910 | yüzey: | Turşu ve Tavlı, Parlak Tavlı, Parlak |
3.Product details:
| Outer diameter |
Φ6-630mm |
|||||||||||||||
| wall thickness | 1-50mm | |||||||||||||||
| Size | Customized | |||||||||||||||
| Manufacturing process | The steel melt shall be refined with AOD or equivalent | |||||||||||||||
|
Chemical composition |
|
|||||||||||||||
|
Maximum length |
18000mm/Customized
|
|||||||||||||||
| Mechanical properties Tensile strength: |
σb≥690Mpa Elongation: δ≥35% |
|||||||||||||||
|
Advantages |
1. Corrosion resistance is better than 316L and 317L stainless steel, which can be exposed to the atmospheric environment above the sea for a long time. In the quiet seawater environment, corrosion resistance is slightly better than Monel 400 alloy.
2. Double the tensile strength of 304 and 316 stainless steel.
3. In the environment of thermal chloride, it will be affected by stress corrosion cracking, and its anti-cracking performance is between 304 and 316.
4. Excellent mechanical performance at 629℃
5. Good mechanical properties and extremely low permeability under low temperature conditions.
|
|||||||||||||||
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
|||||||||||||||
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements | |||||||||||||||
| MOQ | 1pcs | |||||||||||||||
| Delivery time | 10-100 days depending on quantity | |||||||||||||||
| Payment terms | T/T or Western Union or LC | |||||||||||||||
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc | |||||||||||||||
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc | |||||||||||||||
| Remarks | Other materials and drawings are available. |

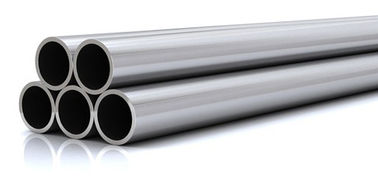

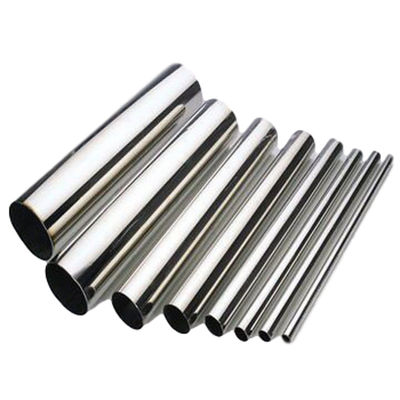

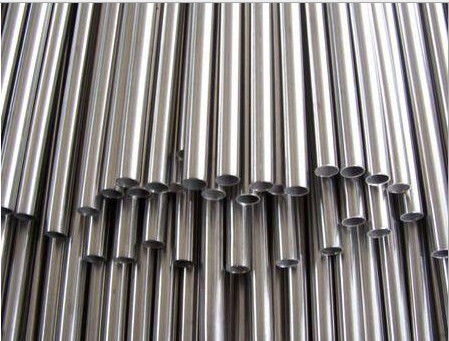

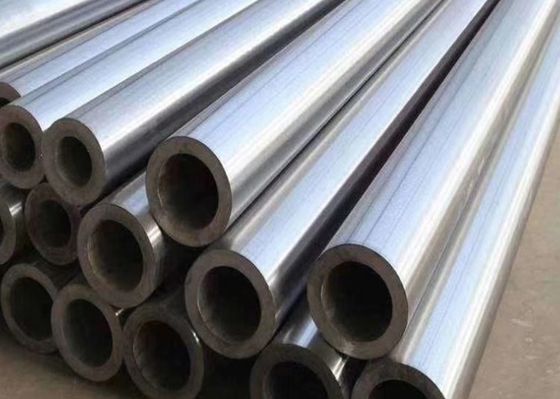

Hot Rolled UNS S20910 XM-19 Nitronic 50 Stainless Steel Chemical Pipe pictures
